ELD Providers Available for PortPro connection

Connecting to ELD

PortPro can now connect to various ELD providers. We are using Axle API, a company that allows us to access the data from ELD providers. 46 To connect, from the super admin account navigate to Settings - My apps - Fleet Maintenance and click the Connect button. Allow the permissions. Users will want to connect drivers and trucks for full tracking capabilities. The pop up will have allow users to associate profiles in PortPro to the information available in user's ELD provider's website / software.

Then, enable the GPS location and truck assignment for the driver. Please note a truck must be assigned to the driver in order to retrieve the live tracking information from the ELD.

Now in driver and truck profiles, there is an ELD column showing they are connected. Users can open an individual profile to connect the driver or truck. This is a user permission controlled in Settings - Users & Permissions - Other category.




ELD will take priority for tracking. If for some reason this connection goes down, our app tracking will be used.

PortPro only pulls information from the ELD, it does not send any information back to it. More than one ELD can be connected to.

Using ELD in PortPro

To view ELD tracking, go to the Tracking page on the navigation bar or from within a load. A green dot on the driver name means they are using ELD tracking versus a blue dot means they are using the PortPro app tracking.

This icon in the top right of the Tracking page allows traffic visibility, locations (customer profiles / organizations) and driver names.

The above icon in the bottom right corner displays the legend for the map icons.

For any arrived events (ex arrived at delivery), we can see the time elapsed at that location under the driver's assigned loads / moves. For enroute events, an ETA will display. The Frequency refers to how often we are calculating the ETA based on driver location.

•


  • ETA: 120 minutes - Frequency: 5 minutes

  • ETA: 60 minutes - Frequency: 2 minutes

  • ETA: 30 minutes - Frequency: 1 minute

  • ETA: 10 minutes - Frequency: 36 seconds

  • ETA: 5 minutes - Frequency: 18 seconds

  • ETA: 2 minutes - Frequency: 6 seconds

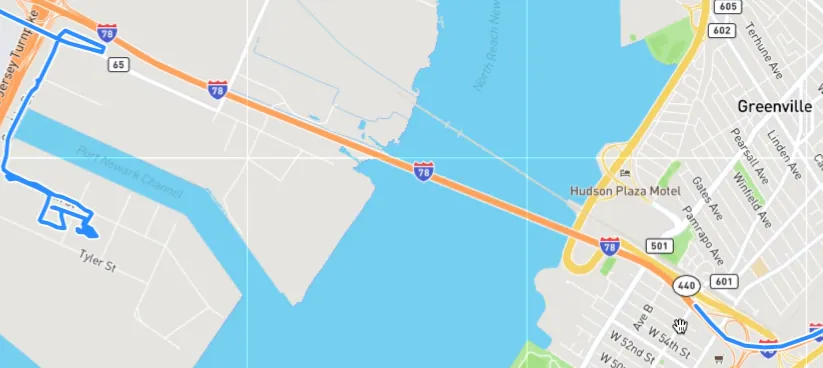

For any times that there is not a connection, there may be a break in the tracking such as above.

This circular button can be used to see the driver's live location or historical data. This will show all data whether connected to a load or not.

Filtering Tracking Information

Clicking the driver name on the left filters the view by driver. The date range at the bottom of the screen can be adjusted to filter loads based on their assigned dates.

To filter by load, select the arrow to the left of the load number. Events can then be selected to further narrow the view.

The arrow pointing outward on the right enables the live tracking link to be sent to the customer.

ELD Providers Available for Connection

ADA
Apollo
Ascend
Azuga
BigRoad
Blue Ink Tech
BudgetGPS
CyntrX
DriverTech
ELD Mandate
EROAD
EZLOGZ
Fleet Complete Hub
Fleet Complete Web
FleetHunt
FleetSharp
FleetUp
FM
Forward Thinking
Geotab
GPS Insight
GPS Trackit
GPSTab
HCSS
HOS 247
Hutch
IntelliShift
ISAAC
JJ Keller
Linxup
Lytx
Mapon
Matrack
Maven
Mobile Fleet Solutions
Motive
NERO
Netradyne
NexTraq
OneStepGPS
Optima
Orbcomm
Payd
PeopleNet
Phoenix
Rand McNally
Rastrac
RouteMate
Samsara
Selective Drive Fleet
Surfsight
Swift
Switchboard
Teletrac Navman
Telogis
Tenna
Think
Tive
Traccar
Transflo
Trimble
TruckX
TT
Verizon Connect
VisTracks
Webfleet
Zonar
Zubie
